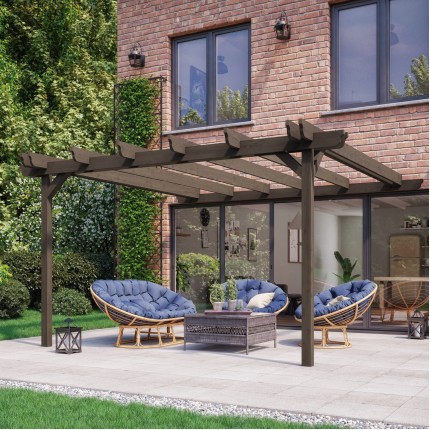

Wall Mounted Double Garden Pergola - 2.4m Depth
Wall Mounted Double Garden Pergola Description
Transform your garden or patio into a stylish living area with a pergola from Rutland County Garden Furniture - The UK's leading pergola manufacturers.
The Wall Mounted Double Garden Pergola features a distinctive double rail configuration and is an enhanced variation on the classic pergola design that adds further timbers which give a more substantial look and feel.
Also available in multiple depths - 1.8m, 3m, 3.6m, 4.2m and 4.8m (and custom sizes upon request) - For these sizes please see our other listings.
- If you require a roof to fit your pergola, please contact us regarding our polycarbonate roof kit.
- If you are adding a roof to your pergola, you will need a 5-degree slope applied to allow the rain water to run off.
Customer image gallery available HERE
Delivery information available HERE
Wall Mounted Double Garden Pergola Features
• Easy assembly with the minimum of tools required.
• High quality pressure treated Northern European Redwood.
• Solid 95mm x 95mm corner posts.
• 34mm x 140mm Runners and Rafters.
• Corrosion treated, heavy duty fixings.
• Distinctive double rail configuration.
• Custom sizes available.
Please ensure you have checked the dimensional drawing for your chosen size and the component parts drawing before completing your purchase as the sizes listed are those of the rafters and runners, not the post dimensions. The post positions can be found on the dimensional drawings.
Width = Overall Length Of Runners
Depth = Overall Length Of Rafters
Rafter Quantity / Rafter Gap Measurement
Runner Length | Rafter Quantity | Gap Size Inbetween Rafters |
2.4m | 7 | 340mm |
3m | 7 | 490mm |
3.6m | 8 | 505mm |
4.2m - 4 Post | 8 | 625mm |
4.8m - 4 Post | 8 | 745mm |
4.2m - 6 Post | 10 | 493mm |
4.8m - 6 Post | 10 | 593mm |
5.4m | 10 | 693mm |
6m | 12 | 587mm |
6.6m | 12 | 661mm |
7.2m | 12 | 736mm |
7.8m | 14 | 642mm |
Please note: The product colours shown are representative only and may differ on the actual product due to natural variations in the timber used.
Unable to find the the size you desire? Please ask us about our custom sized pergolas.
