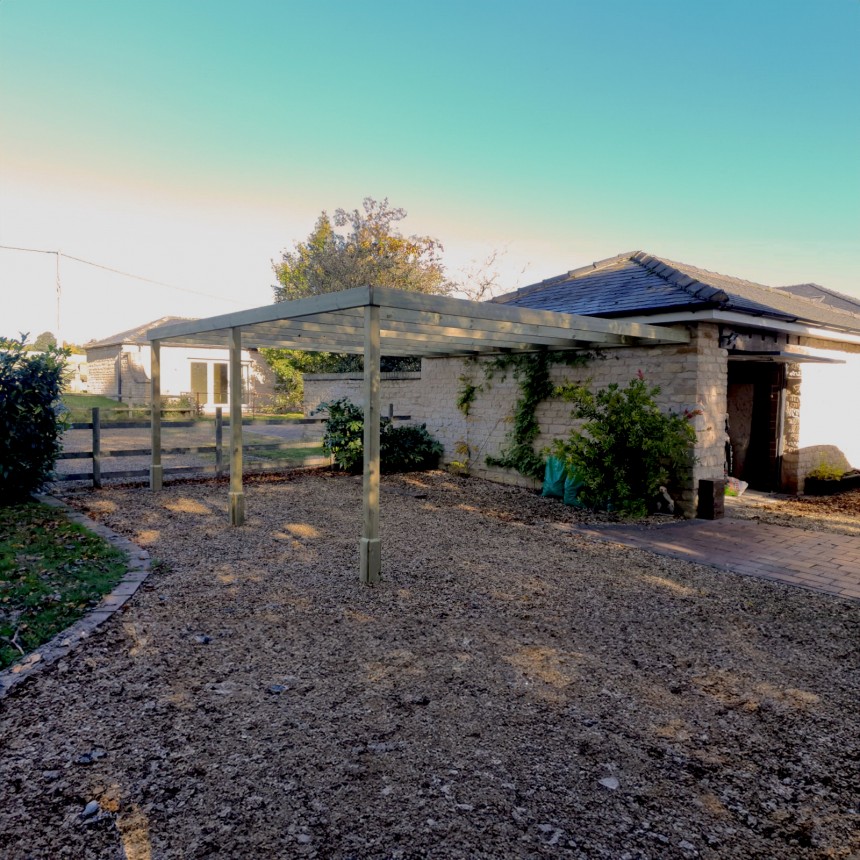

Wall Mounted Box Pergola - 4.8m Depth
Wall Mounted Box Pergola Description
Transform your garden or patio into a stylish living area with a pergola from Rutland County Garden Furniture - The UK's leading pergola manufacturers.
The Rutland Wall Mounted Box Pergola range represents a stylish, contemporary alternative to our more traditional pergola designs. Their clean, uncluttered lines compliment a more structured garden where simplicity of design is key.
The Wall Mounted Box Pergola has been designed to be concreted in situ, so if the pergola will be freestanding, then please purchase the braces to give the structure the stability it requires.
Also available in multiple depths - 1.8m, 2.4m, 3m, 3.6m and 4.2m (and custom sizes upon request) - For these sizes please see our other listings.
- If you require a roof to fit your pergola, please contact us regarding our polycarbonate roof kit.
- If you are adding a roof to your pergola, you will need a 5-degree slope applied to allow the rain water to run off.
Customer image gallery available HERE
Delivery information available HERE
Wall Mounted Box Pergola Features
• Easy assembly with the minimum of tools required.
• High quality pressure treated Northern European Redwood.
• Solid 95mm x 95mm corner posts.
• 34mm x 140mm Runners and Rafters.
• Corrosion treated, heavy duty fixings.
• Custom sizes available.
Please ensure you have checked the dimensional drawing for your chosen size and the component parts drawing before completing your purchase as the sizes listed are those of the rafters and runners, not the post dimensions. The post positions can be found on the dimensional drawings.
Width = Overall Length Of Runners
Depth = Overall Length Of Rafters
Rafter Quantity / Rafter Gap Measurement
Runner Length | Rafter Quantity | Gap Size Inbetween Rafters |
4.8m | 8 | 646mm |
5.4m | 8 | 732mm |
6m | 10 | 628mm |
6.6m | 10 | 695mm |
7.2m | 12 | 617mm |
7.8m | 12 | 672mm |
Please note: The product colours shown are representative only and may differ on the actual product due to natural variations in the timber used.
Unable to find the size you desire? Please ask us about our custom sized pergolas.
Standard UK Delivery - £19.99
To confirm that we can deliver the Wall Mounted Box Pergola to your area please use the postcode checker below!
Postcode Checker
Please enter a postcode to check we can successfully delivery this item & cost to do so
