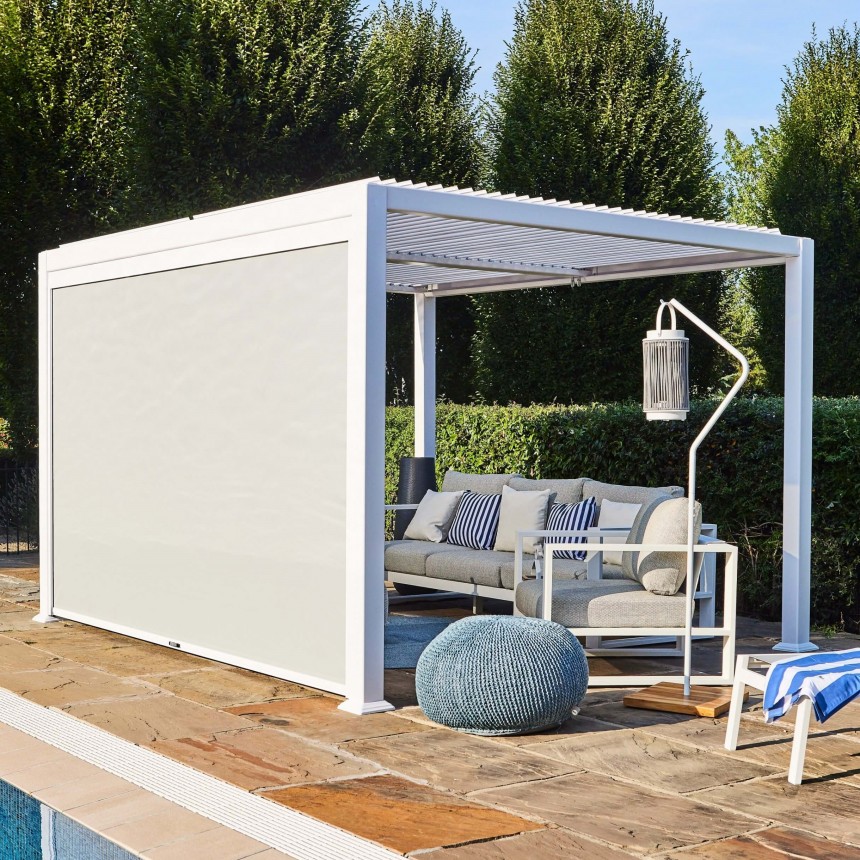

- White - Optional Retractable Screen
- Close Up
- Open Louvered Roof
- Close Up
- Grey - Optional Retractable Screens
Metal Louvered Pergola - 3.5m x 3.6m
Metal Louvered Pergola Description
The beauty in the Metal Louvered Pergola is the versatile design allowing you to create the ideal garden set up with the addition of the optional screens or side panels so whether you want to relax in the sun, take some shade, shelter from the rain or stargaze at night, the Metal Louvered Pergola is the ideal outdoor ready-to use terrace cover.
It features multiple roof sections, meaning one section could have the louvered panels closed and the other open. The louvres open towards the longer length.
The Pergola is manufactured from high-quality aluminium which has been powder coated in the eye-catching Matte Royal Grey or Matte White colour which is UV protected, meaning that not only will the colour not fade over time, but it also protects you and your family from harmful UV rays.
The key feature in the Pergola’s unique design is the vented roof louvres, the winding mechanisms allow you to control the direction of the roof louvres manually creating an open or closed space.
The genius built-in drainage system means that if the weather changes, just close the louvered roof to make the area completely weatherproof, any rainwater that lands on the louvres will flow into the guttering channels and drain through the legs to the ground.
Metal Louvered Pergola Features
Metal Louvered Pergola Preparation
The pergola must be fitted on to a solid surface and beneath the finished surface must be something for the pergola to be secured safely such as a concrete pad.
We advise for concrete pads of approx. 40x40x40cm beneath any tiles, if you have decking then we advise the same or alternatively extra structural joists below the decking.
You should then finish your surface completely with the tiles or decking on top, so that when you install you can drill through the tile/deck and into something extra secure below.
Please be aware that your warranty will not cover you for damage caused to a Pergola that has not been adequately secured to the ground.
A natural fall of ideally 10mm is required to allow the water to drain away as designed and for the screens to be fitted correctly, which by building regulations, your patio likely already has. You are able to use packers under specific legs to ensure the complete gazebo works correctly should the fall of the patio level be different to the above.
Please note, when installing the screens, you will require a rivnut tool to punch the holes for the rivets into the legs.
Please ensure you have checked the dimensional drawing for your chosen size before completing your purchase as the sizes listed are those of the rafters and runners, not the post dimensions. The post positions can be found on the dimensional drawings.
